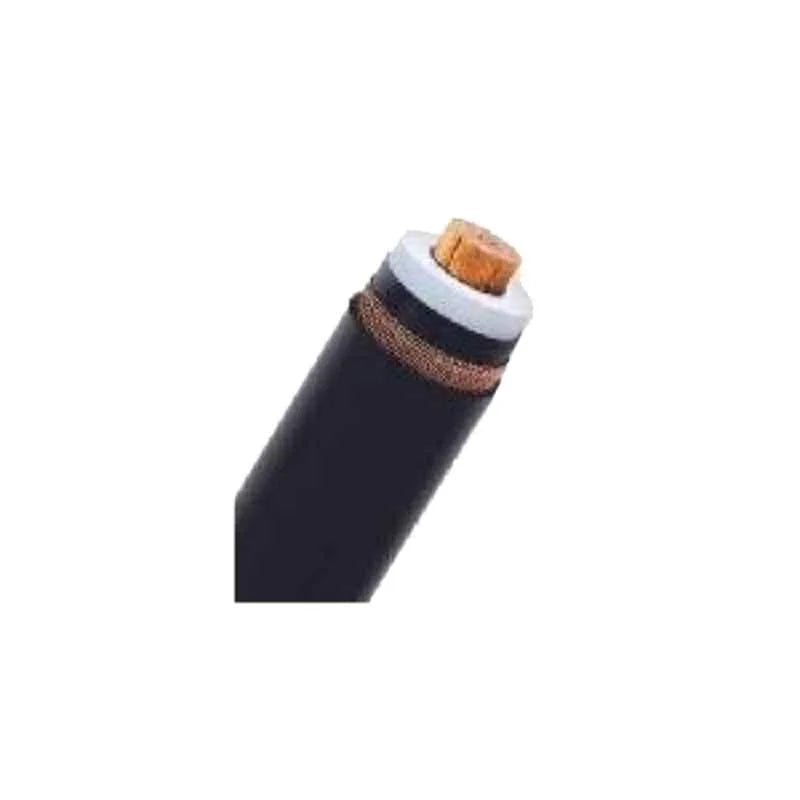

KEI 630.0 sqmm Copper PVC Sheathed XLPE Low Tension Armoured Power Cable, ( 1 METER )

Conductor Material: Copper (stranded)

Cross-Sectional Area: 400 sqmm

Number of Cores: Typically available in 4-core configuration (2XWY type)

Insulation: XLPE (Cross-Linked Polyethylene) for excellent thermal and electrical performance

Sheath: PVC outer sheath for mechanical and environmental protection

Armouring: Steel strip armouring for enhanced mechanical strength and durability

Voltage Rating: 1100 V (Low Tension)

Standards: IS 7098 (Part 1) 1988 compliant

Current Rating: Approximately 227 Amps (direct buried), 258 Amps (in air)

Overall Diameter: Approx. 41.9 mm (strip armoured), 39.1 mm (wire armoured)

Thickness of PVC Insulation: 1.2 mm

Minimum Thickness of PVC Inner Sheath: 0.5 mm

Minimum Thickness of PVC Outer Sheath: 1.88 mm (strip armoured), 1.72 mm (wire armoured)

Capacitance: About 0.29 mFd/Km

Country of Origin: India

Manufacturer: KEI Industries Limited
