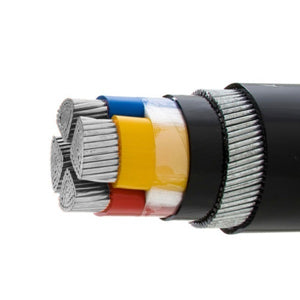

KEI 500.0 sqmm Aluminum PVC Sheathed XLPE Low Tension Armoured Power Cable, ( 1 METER )

Conductor Material: Aluminum

Cross Sectional Area: 500 sqmm

Number of Cores: Typically 3 core and 4 core variants available

Insulation: XLPE (Cross-linked Polyethylene) for excellent electrical and thermal performance

Sheath: PVC (Polyvinyl Chloride) providing mechanical and environmental protection

Armouring: Steel strip armouring for robust mechanical protection

Voltage Rating: 1100 V (Low Tension)

Standard: IS 7098 (Part 1) 1988 compliant

Overall Diameter:

• Around 69.2 mm (strip armoured, 3.5 core)

• Around 72.1 mm (strip armoured, 4 core)

Current Rating: Approximately 542 Amps

Thickness of PVC Insulation: Around 2.0 mm

Thickness of Inner PVC Sheath: Approximately 0.7 mm

Thickness of Outer PVC Sheath: About 2.84 mm

Armour Thickness: Approximately 4 x 0.8 mm strips

Max DC Resistance at 20°C: Approximately 0.08 Ohm/km

Approximate Weight: Around 3100 to 3300 kg per km
