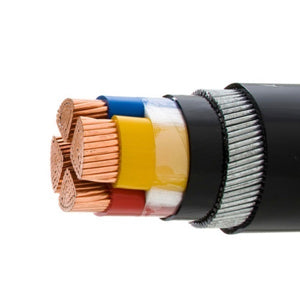

KEI 4.0 sqmm Copper PVC Sheathed XLPE Low Tension Armoured Power Cable, ( 1 METER ) (Copy)

The KEI 4.0 sqmm Copper PVC Sheathed XLPE Low TensionArmoured Power Cable (per meter) is designed for reliable power transmission in low tension applications where armouring is not required.

Key Specifications

• Conductor Material: High-conductivity copper.

• Cross Sectional Area: 4.0 sqmm.

• Core Options: Commonly available in , 2 core, 3 core, 4 core; 4 core is preferred for three-phase with neutral cabling.

• Insulation: XLPE (Cross-linked Polyethylene), offering superior thermal and electrical insulation.

• Sheath: PVC (Polyvinyl Chloride) for added protection.

• Armouring: Un-armoured design (no steel strip/wire)—used for applications where mechanical protection from armouring is not needed.

• Voltage Grade: 1100 Volts (Low Tension).

• Nominal Diameter: Approx. 17.5 mm for 4 core variant.

• Nominal Insulation Thickness: 1.0 mm.

• Nominal Outer Sheath Thickness: 1.40 mm.

• Net Weight: Approx. 771 kg/km for 4 core 4 sqmm cable.

• Max DC Resistance @ 20°C: 4.6 Ohms/km.

• Max AC Resistance @ 70°C: 5.52 Ohms/km.

• Current Rating: Typically up to 25-32 Amps depending on installation and ambient temperature.
