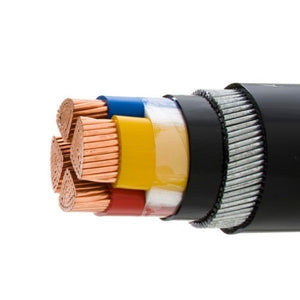

KEI 25.0 sqmm Copper PVC Sheathed XLPE Low Tension 2XY Un-Armoured Power Cable, ( 1 METER )

Key Specifications

• Conductor Material: Copper, high conductivity.

• Cross Sectional Area: 25.0 sqmm.

• Cable Type: 2XY (Unarmoured, XLPE insulated, PVC sheathed).

• Insulation: XLPE (Cross-linked Polyethylene) for better heat and electrical resistance.

• Sheath: PVC (Polyvinyl Chloride), providing flexibility and environmental protection.

• Rated Voltage: 1100 Volts (Low Tension).

• Standard Compliance: IS 7098 (Part 1):1988 for LT XLPE copper cables.

• Number of Cores: Usually available in 2, 3 or 4 core; 2 core and 3 core are standard in this category.

• Nominal Thickness of XLPE Insulation: 0.9 mm.

• Nominal Thickness of PVC Outer Sheath: 2.00 mm.

• Overall Diameter: Approximately 20.30 mm for 3 core x 25 sqmm variant (4 core diameter is typically 22.4 mm).

• Net Weight: Approximately 962 kg/km (for 3 core 2XY 25 sqmm).

• Max DC Resistance @ 20°C: 0.727 Ohms/km.

• Max AC Resistance @ 90°C: 0.930 Ohms/km.
