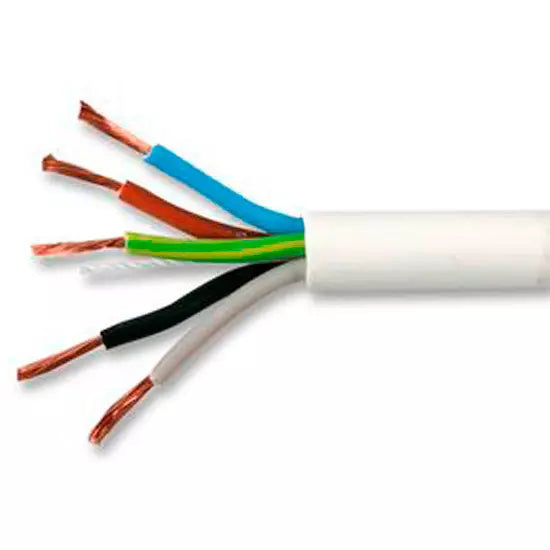

KEI 10.0 SQMM FLEXIBLE PVC INSULATED MATICORE FR COPPER IS- 694:2010 (100MTR)

Key Specifications:

• Conductor: Bright annealed electrolytic bare copper, multistranded for flexibility (typically 80 strands of 0.40 mm diameter)

• Insulation: Flame retardant PVC (FR PVC) providing good fire resistance and thermal stability

• Voltage rating: Up to 1100 V

• Cable type: Available as single core and multicore (commonly 2-core, 3-core, up to 10-core) versions

• Current rating: Approximately 50-51 Amps depending on installation conditions

• Applications: Suitable for wiring motors, control panels, electrical boards, battery connections, and power distribution in residential, commercial, and industrial uses

• Features: Flexible construction to aid easy installation, high mechanical and abrasion resistance, low conductor resistance for energy efficiency

• Sheath: Usually PVC sheathed (black or white color options)

• Standards compliance: Fully complies with IS-694:2010
