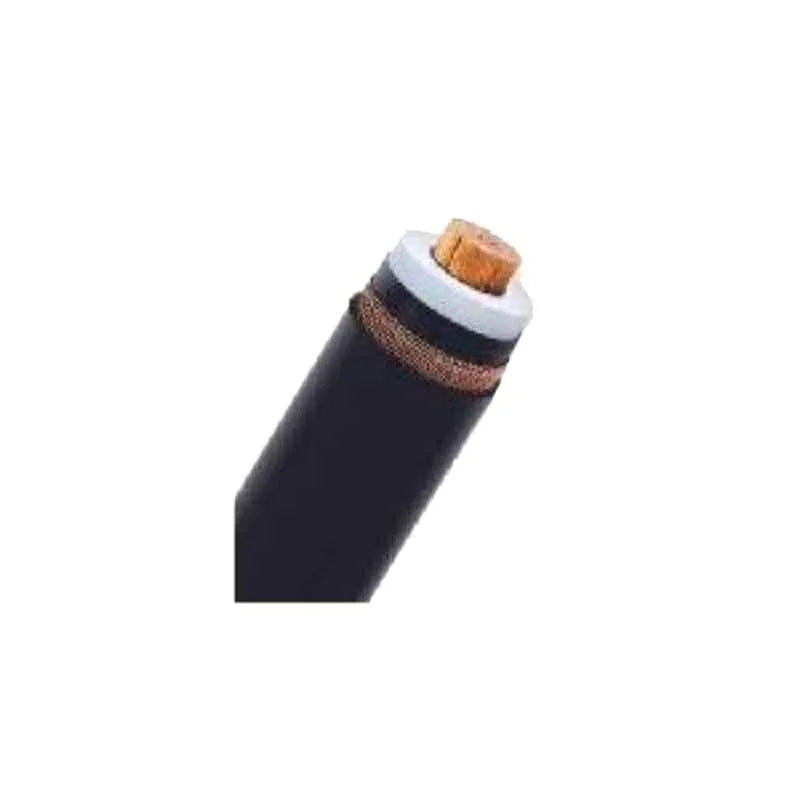

KEI 10.0 sqmm Aluminum PVC Sheathed XLPE Low Tension Armoured Power Cable, ( 1 METER )

Technical Specifications

• Conductor Material: Aluminum, solid for up to 10 sqmm (stranded above this size)

• Size: 10.0 sqmm

• Insulation: XLPE (Cross-linked polyethylene), which provides better thermal and electrical properties than PVC alone.

• Sheath: Extruded PVC Type ST2, providing protection against moisture, chemicals, and abrasion.

• Armouring: Galvanized steel strip (for 10.0 core cables in this size), protecting the cable from physical damage and rodents.

• Voltage Grade: 650/1100V as per IS 7098 (Part 1): 1988.

• Core: Usually manufactured in 1-core, 2-core, 3-core, and 4-core variants for LT power applications, with 4-core common in three-phase plus neutral wiring.

• Typical Applications: Suitable for wiring in distribution boards, industrial panels, utility grids, and commercial buildings.
