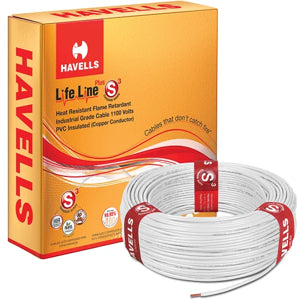

Havells Lifeline FR PVC Cables 6.0 sq. mm (200 MTR )

The Havells Lifeline FR PVC Cable 6.0 sq. mm (200 MTR) is a high-quality, flame-retardant single-core flexible copper conductor wire designed for internal electrification and power supply in residential and commercial buildings. It complies with IS:694 standards and is rated for 1100 V, assuring safety, flexibility, and durability in electrical wiring systems.

Key Specifications:

• Brand: Havells Lifeline

• Cross Section: 6.0 sq. mm

• Voltage Rating: 1100 V

• Conductor Type: Annealed ETP grade copper strands (typically 84 strands of 0.3 mm)

• Insulation: Heat Resistant Flame Retardant PVC (HRFR)

• Nominal Insulation Thickness: 0.8 mm

• Approximate Overall Diameter: 4.6 mm

• Current Carrying Capacity: Approximately 43-52 A depending on installation method

• Operating Temperature: Up to 85°C continuous

• Other Features: Low leakage current (~0.015 mA), anti-termite & anti-rodent protection, RoHS compliant, high bending radius for easy installation
