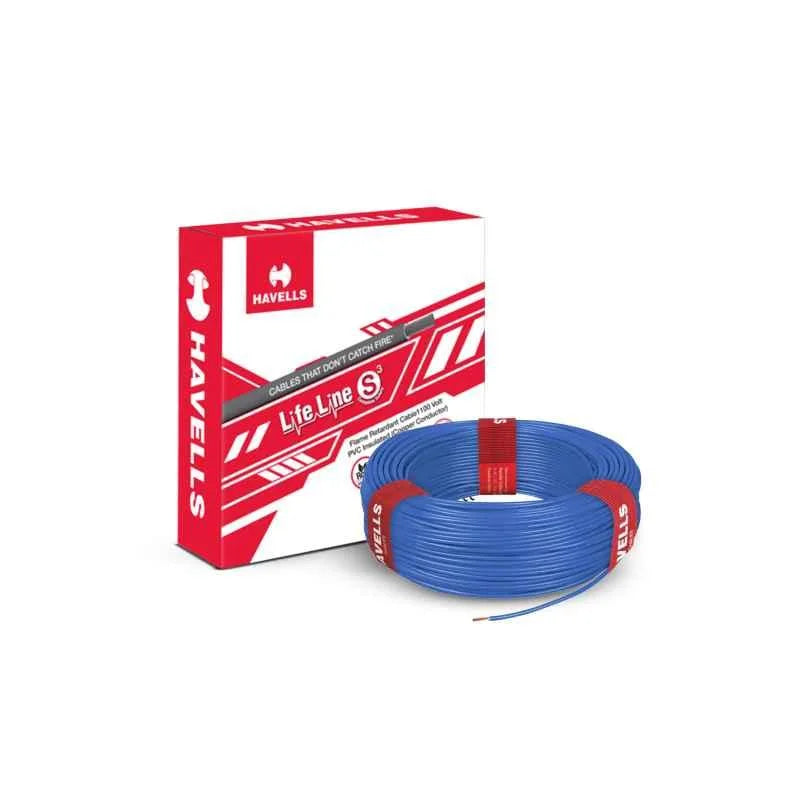

Havells Life line FR PVC Cables 1.5 sq. mm (180 MTR )

The Havells Life Line FR PVC Cable 1.5 sq. mm (180 MTR) is a single-core flexible copper conductor wire with flame-retardant PVC insulation, designed for safe and efficient internal wiring. It supports up to 1100 V operation and offers high flexibility, durability, and superior fire resistance for domestic and commercial electrical installations.

Technical Specifications:

• Brand: Havells

• Model: Life Line FR

• Conductor Material: ETP-grade annealed bare copper (99.95% pure, 101% conductivity IACS)

• Nominal Cross Section: 1.5 sq. mm

• Conductor Stranding: 22 strands of 0.30 mm

• Rated Voltage: 1100 V (as per IS:694:2010)

• Insulation Material: Flame Retardant (FR) PVC compound

• Nominal Insulation Thickness: 0.7 mm

• Approximate Overall Diameter: 3.0 mm

• Maximum Conductor Resistance at 20°C: 12.10 Ω/km

• Current Carrying Capacity:

  • 14 A (in conduit/trunking)

  • 17 A (unclipped on surface)

• Operating Temperature Range: Up to 70°C continuous
