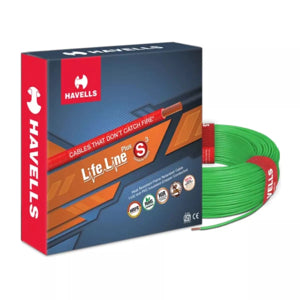

Havells Life line FR PVC Cables 1.0 sq. mm (180 MTR )

The Havells Life Line FR PVC Cable 1.0 sq. mm (180 MTR) is a high-quality flame-retardant flexible copper conductor cable, ideal for internal wiring and power supply to electrical equipment such as fans, lights, and small appliances. It offers superior safety, performance, and durability through its advanced flame-retardant insulation and high-conductivity copper.

Technical Specifications

• Brand: Havells

• Model Name: Life Line FR

• Conductor Material: Annealed Bare Copper (ETP grade, 99.95% purity, 101% conductivity IACS)

• Size (Cross Section): 1.0 sq. mm

• Rated Voltage: 1100 V (as per IS:694:2010)

• Conductor Strands: 32 strands of 0.20 mm each

• Nominal Insulation Thickness: 0.6 mm

• Overall Diameter: Approximately 2.7 mm

• Maximum Conductor Resistance at 20°C: 19.5 Ω/km

• Current Carrying Capacity:

  • 12 A (in conduit/trunking)

  • 14 A (unclipped on surface)

• Insulation Material: Flame Retardant (FR) PVC compound

• Temperature Rating: 70°C continuous operation
