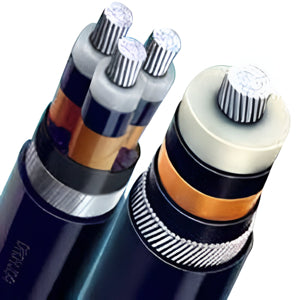

Havells 400.0 sqmm Copper PVC Sheathed XLPE Low Tension Armoured Power Cable, A2XWY/A2XFY ( 1 METER )

Havells 400.0 sqmm Copper PVC Sheathed XLPE Low Tension Armoured Power Cable, A2XWY/A2XFY ( 1 METER )

Regular price Rs. 7,377.72
Regular price Rs. 17,566.00 Sale price Rs. 7,377.72
Unit price Rs. 737,772.00/100m
Sale Sold out
Core
Quantity

The Havells 400.0 sqmm Copper PVC Sheathed XLPE Low Tension Armoured Power Cable (A2XWY/A2XFY, 1 meter) is one of Havells’ highest current-carrying LT-grade copper cables, designed for heavy industrial power distribution. It meets IS:7098 (Part 1) 1988 standards and is built for long-term reliability, safety, and mechanical durability under high load conditions.

Key Specifications

Parameter Details
Brand Havells
Cable Type Low Tension XLPE Insulated Armoured Power Cable
Conductor Material Copper, compacted circular stranded (Class 2)
Cross Sectional Area 400.0 sqmm
Voltage Grade 650/1100 V (LT)
Number of Cores Available in 1-core, 3-core, 3.5-core, and 4-core options
Insulation Type XLPE (Cross Linked Polyethylene)
Inner Sheath Extruded PVC Type ST-2
Armouring Type A2XWY/A2XFY – Galvanized Steel Wire/Flat Strip Armoured
Outer Sheath PVC (Black), FR/FRLS optional for flame resistance
Approx. Overall Diameter 65–69 mm depending on core configuration
Approx. Cable Weight 13.0 – 14.5 kg/m (≈13000–14500 kg/km)
Temperature Rating Continuous up to 90°C; short circuit up to 250°C
Current Carrying Capacity 520–550 A (in air, single core) depending on installation
Standard IS:7098 (Part 1):1988
Unit Supply Per meter
