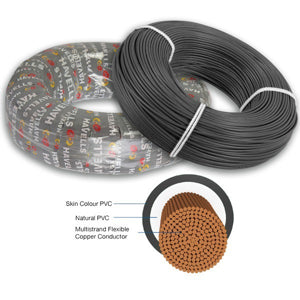

Havells 25.0 Sqmm Multicore Black PVC Insulated Copper Conductor Round Flexible Industrial Cable, ( 100MTR)

The Havells 25.0 Sqmm Multicore Black PVC Insulated Copper Conductor Round Flexible Industrial Cable (100 MTR) is a high-performance, heavy-duty cable meticulously designed for industrial power, control, and automation applications. It combines superior conductivity with robust insulation, making it ideal for high-load electrical networks and mechanical environments. This cable conforms to IS:694:2010 and is rated for 1100 V operations.

Key Specifications:

• Brand: Havells India Limited

• Conductor Material: Annealed bare copper, multi-stranded flexible (Class 5)

• Cross Sectional Area: 25.0 sq. mm

• Number of Cores: Typically available in 2, 3, and 4-core configurations

• Nominal Voltage Rating: 1100 V

• Insulation Type: PVC Type D (flame-retardant as per IS:5831)

• Outer Sheath Material: PVC Type ST-3 (black, round sheathing, abrasion-resistant)

• Approx. Overall Diameter (4-core): Around 26 mm

• Nominal Insulation Thickness: 0.9 mm

• Maximum Conductor Resistance (20°C): 0.727 Ω/km

• Current Carrying Capacity: 120–130 A (varies by installation type)

• Operating Temperature Range: -10°C to +70°C continuous

• Product Code (4-core): WHMFDSKG4025
