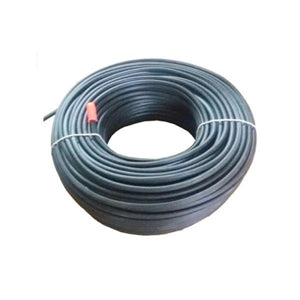

FINOLEX RG 11 CCA CU JELLY COAXIAL CABLE

The FINOLEX RG 11 CCA Jelly Coaxial Cable is a cable designed for cable TV and data transmission applications with the following characteristics:

• Conductor: Copper Clad Steel (CCA), which provides high mechanical strength and supports longer spans without stretching. The copper cladding on steel offers good signal quality conductivity due to the skin effect.

• Dielectric: Gas injected physical foam polyethylene which lowers attenuation and maintains consistent electrical parameters.

• Shielding: Laminated aluminum tape bonded to the foam dielectric, plus an aluminum alloy braid with about 60% coverage for noise and interference reduction.

• Filling: Jelly flooded to protect the cable against moisture ingress.

• Outer jacket: Black PVC, UV resistant for protection against environmental factors.

• Nominal Diameter: Inner conductor approx. 1.02 mm, overall cable around 7 mm.

• Electrical properties: Characteristic impedance around 75 ohm, nominal capacitance about 53 pF/m, and specified attenuation performance suitable for high-frequency signals.

• Available lengths: typically in 100 m and 305 m coils.
