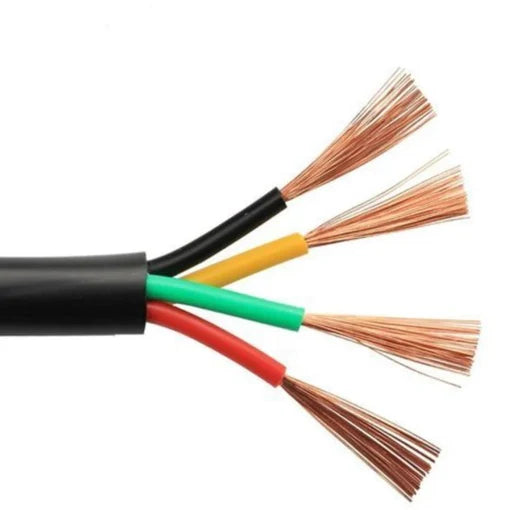

Finolex FR PVC 95 sqmm Multicore Heavy Duty Flexible Cable, Round Sheathed, 1100V (100Mtr)

The Finolex FR PVC 95 sqmm Multicore Heavy Duty Flexible Cable, Round Sheathed, 1100V (100 MTR) is a specialized, industrial-grade cable designed for high-current and demanding electrical installations with strong flame retardant and flexibility features.

Essential Specifications:

• Conductor: Multi-stranded bright annealed bare copper conductor with approximately 475 strands, delivering excellent conductivity and mechanical flexibility.

• Cross Section: 95 sqmm per core.

• Insulation: Flame Retardant (FR) PVC insulation conforming to IS 694:2010 standards for enhanced fire safety and electrical insulation.

• Sheath: Round PVC outer sheath that is flame retardant, mechanically robust, and abrasion resistant.

• Voltage Rating: Rated for 1100 volts AC.

• Core Configurations: Available in 3 or 4 core options, with color-coded insulation on each core for easy electrical identification.

• Length: Typical length supplied is 100 meters.

• Current Capacity: Suitable for heavy industrial power and control wiring applications demanding high current capacity.

• Applications: Used widely in motor wiring, industrial machinery, power distribution panels, UPS systems, and control panels in industrial and commercial environments.

• Durability: Resistant to mechanical stress, moisture, and fire, with a high oxygen and temperature index to restrict flame spread.

• Certifications: ISI marked, FIA/TAC approved, ensuring strict compliance with Indian fire safety and electrical standards.

• Additional Information: Manufactured with 99.97% pure electrolytic grade copper achieving more than 100% conductivity for optimal electrical performance and energy saving.

This cable is part of Finolex's high-performance FR PVC multicore flexible cable series, trusted for reliability, longevity, and safety in heavy electrical systems
