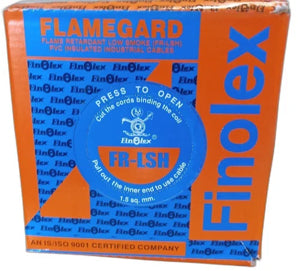

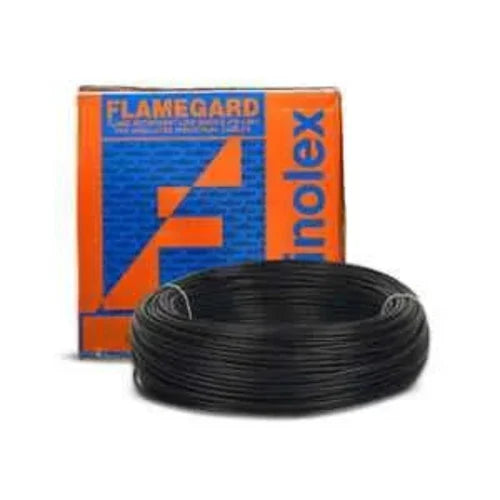

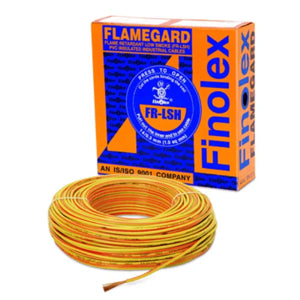

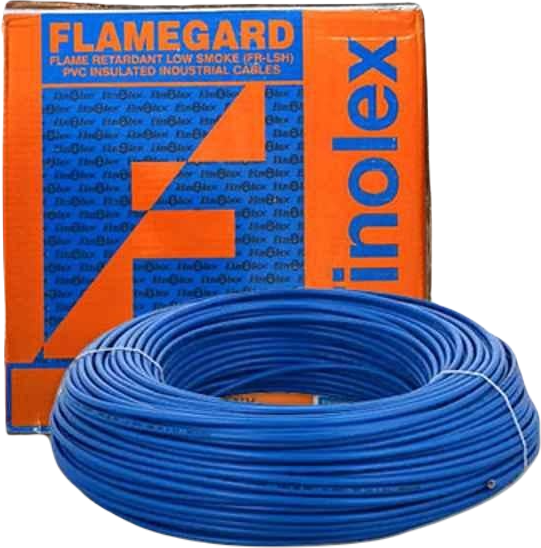

FINOLEX FLAMEGARD FR-LSH 1.00 Sqmm Industrial Cable 1100V (90Mtr)

The FINOLEX FLAMEGARD FR-LSH 1.00 Sqmm Industrial Cable 1100V (90 MTR) is a flame retardant, low smoke halogen-free (FR-LSH) PVC insulated cable designed for industrial and residential wiring requiring high safety standards.

Key Specifications

• Conductor: 99.97% electrolytic grade copper, multi-stranded for flexibility and superior conductivity.

• Insulation: High-quality FR-LSH PVC compound compliant with IS 694:2010, offering flame retardance and low smoke emission during fire.

• Voltage Rating: Rated for up to 1100V.

• Current Capacity: Around 11-12 Amps depending on installation conditions.

• Insulation Thickness: Nominal 0.6-0.7 mm.

• Length: Supplied in 90-meter coils.

• Physical Diameter: Approx. 2.6 mm outer diameter.

• Color Options: Available in standard electrical colors including red, yellow, blue, black, and green.

• Fire Performance: Meets critical oxygen index >29% and temperature index >250°C at 21% oxygen.

• Certifications: ISI Marked, RoHS, FIA/TAC fire insurance approved.

• Applications: Suitable for use in homes, commercial buildings, industrial wiring, control panels, and engineering projects where minimized smoke and toxicity on fire are critical.

• Additional Features: Manufactured with lead-free PVC, designed to reduce toxic gas emissions and smoke density to enable safer evacuation during fires.

This cable combines safety, reliability, and compliance with stringent fire retardant and low smoke standards, ideal for critical wiring applications requiring enhanced fire protection.
