FINOLEX CCTV GEN Z (3+1 ) CABLE

The FINOLEX CCTV GEN Z (3+1) Cable is a high-quality CCTV cable designed for optimal video and power transmission in surveillance systems. Key features and specifications include:

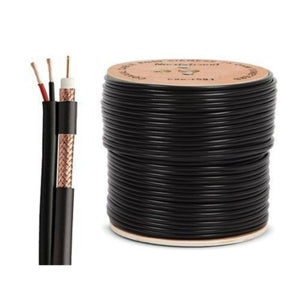

• Construction: 3 copper power cores plus 1 coaxial video core.

• Conductors: Centre conductor of coaxial cable made from electrolytic grade 99.97% pure copper; power cores are also copper strands.

• Dielectric: Solid high-density polyethylene for the coaxial core.

• Shielding: First shield is a bonded aluminum tape, second shield is an aluminum alloy braid for excellent noise and interference reduction.

• Jacket: Black flame-retardant PVC jacket conforming to IS 5831 standards.

• Power cores: Insulated with PVC in red, yellow, and blue colors.

• Electrical properties: Max DC resistance for inner conductor approximately 62 Ω/km at 20°C; braid resistance max 75 Ω/km; loop resistance max 138 Ω/km; capacitance about 158 pF/m.

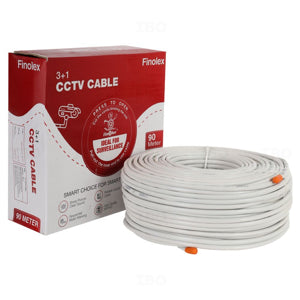

• Available lengths: Typically in 90 meters and 180 meters rolls.

• Application: Designed for reliable CCTV video transmission along with power supply in one cable, suitable for indoor and outdoor installations.
