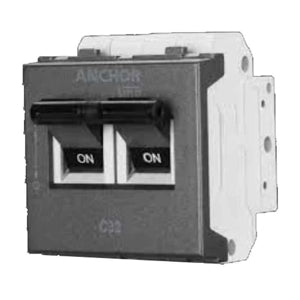

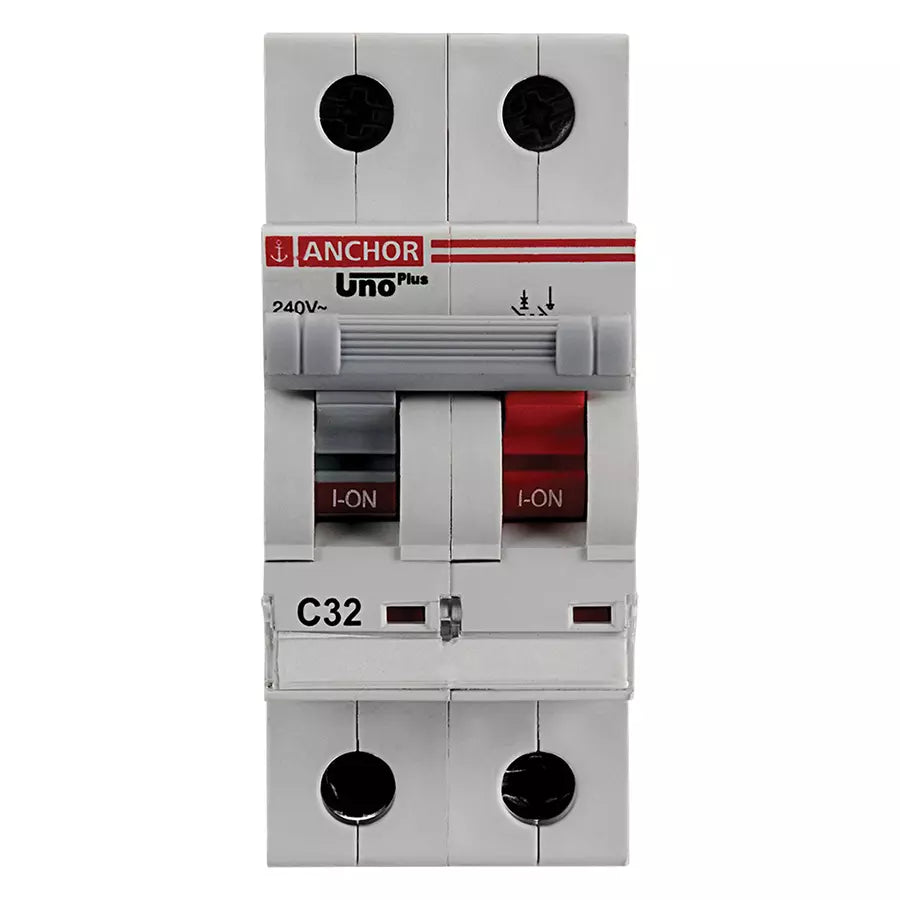

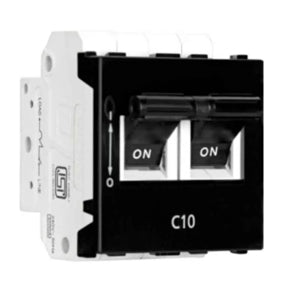

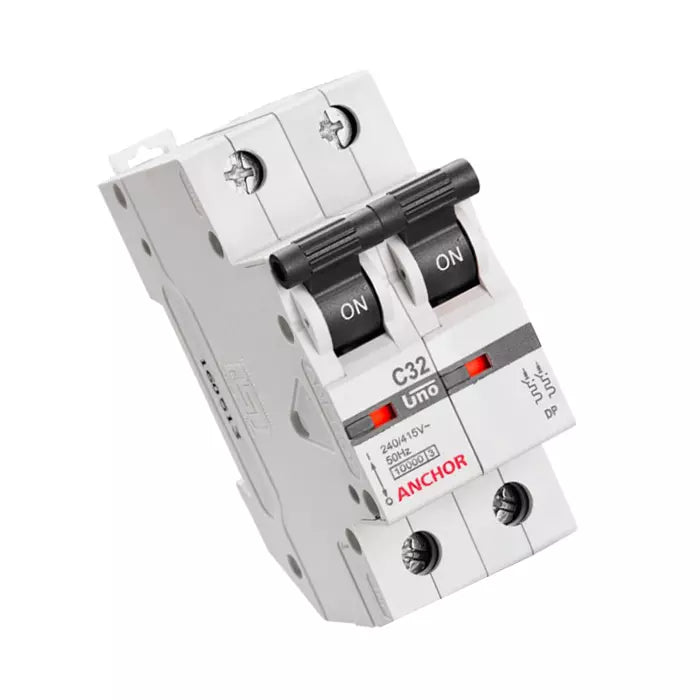

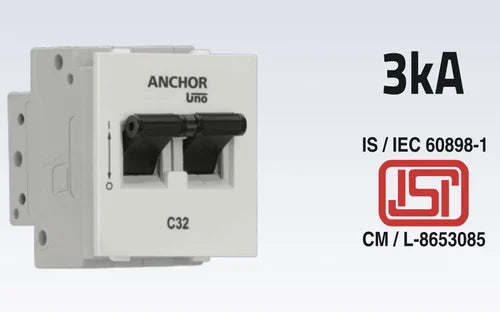

Anchor UNO 6A C Type Double Pole MCB, 98017 (Pack of 12)

The Anchor UNO 6A C Type Double Pole MCB, model 98017, available in a pack of 12, provides robust and reliable protection against overloads and short circuits. It features a 6A rated current with a C Curve tripping characteristic, suitable for circuits with moderate inrush currents. The MCB has a high breaking capacity of 10 kA, operates at 240/415V AC voltage, and includes features like mid-trip indication and positive contact indication for easy fault diagnosis. The design includes energy efficiency with IP20 protection, a quick make and break mechanism, and reversible line/load connection capabilities. It is built with flame-retardant materials and complies with IS/IEC 60898-1 standards for safety and performance.

Key Specifications:

• Brand: Anchor UNO

• Rated Current: 6 Amperes

• Poles: Double Pole (2P)

• Curve Type: C Curve (thermal-magnetic trip)

• Breaking Capacity: 10 kA (10000A)

• Rated Voltage: 240/415 V AC

• Features: Mid-trip indication, positive contact indication, energy-efficient, quick make & break

• Protection Rating: IP20

• Certification: IS/IEC 60898-1 compliant

• Packaging: Pack of 12

Features:

• Effective protection for low-power circuits such as lighting and small appliances

• Durable construction with flame-retardant body

• Easy installation with snap-fit mechanism

This MCB is ideal for residential and commercial electrical systems requiring dependable low-current circuit protection with high fault-clearing capability.
