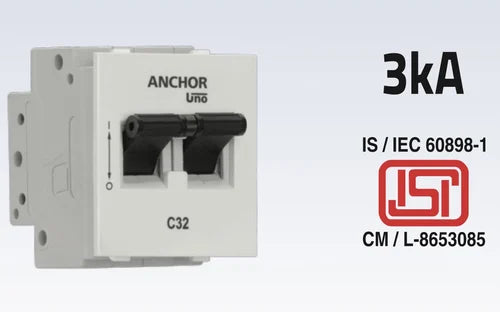

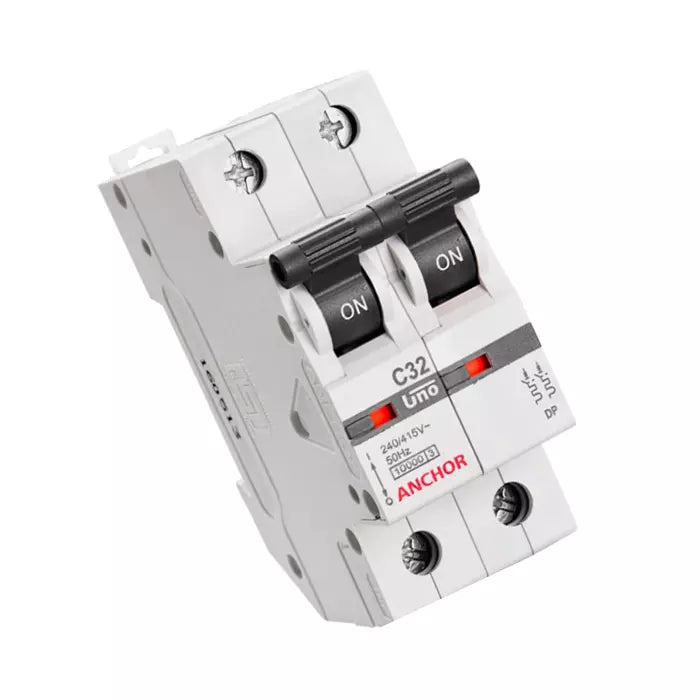

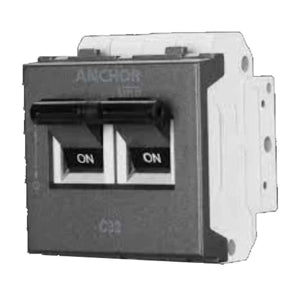

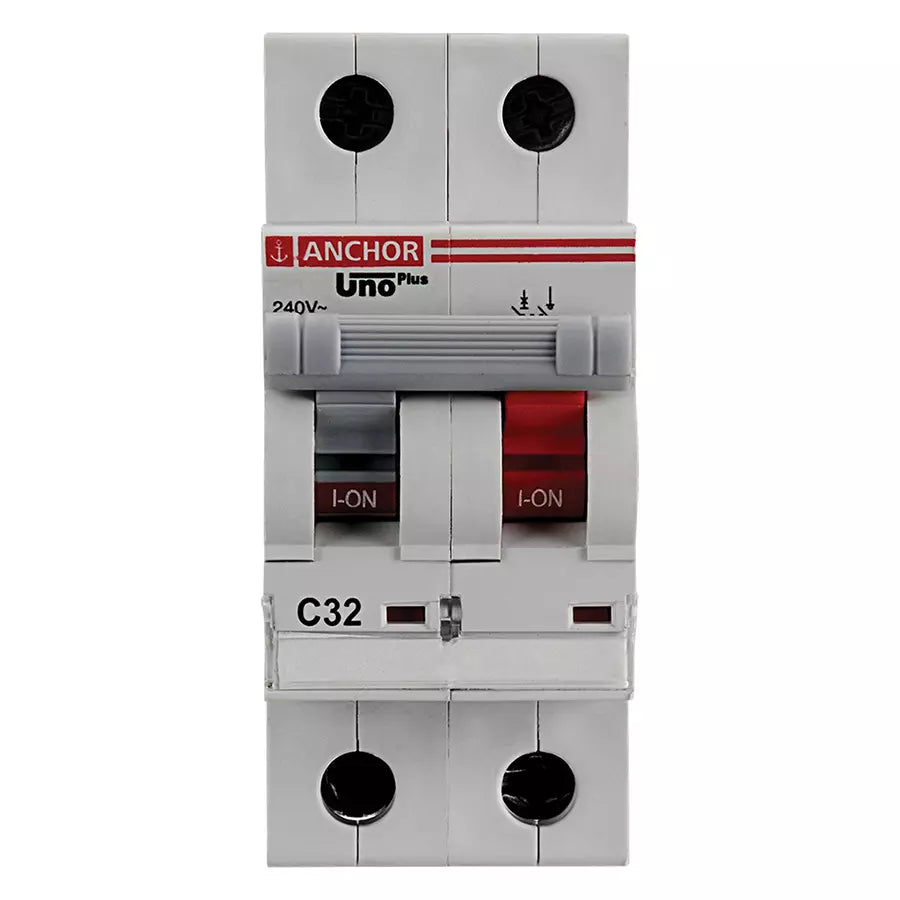

Anchor UNO 20A C Type DP MCB, 98020 (Pack of 12)

The Anchor UNO 20A C Type Double Pole MCB, model 98020, available in a pack of 12, provides reliable protection against overloads and short circuits. It features a double pole configuration rated at 20 Amperes with a C Curve trip characteristic suitable for moderate inrush currents. The MCB has a breaking capacity of 10 kA (10000A), operates at 240/415V AC with 50 Hz frequency, and uses flame-retardant PVC plastic housing in white color.

Key Specifications

• Poles: Double Pole (2P)

• Rated Current: 20 Amperes

• Curve Type: C Curve (thermal-magnetic trip)

• Rated Voltage: 240/415 V AC

• Frequency: 50 Hz

• Breaking Capacity: 10 kA (10000A)

• Housing: Flame-retardant PVC plastic

• Color: White

• Dimensions: 3 x 4 x 10 cm

• Mounting: Modular snap-fit or DIN rail

• Certification: IS/IEC 60898-1 compliant

• Packaging: Pack of 12

Features

• Mid-trip and positive contact indication for fault diagnosis

• Trip-free mechanism prevents manual override during faults

• Quick make/break operation with reversible line/load terminals

This MCB suits residential and commercial circuits for higher-load appliances requiring robust protection.
