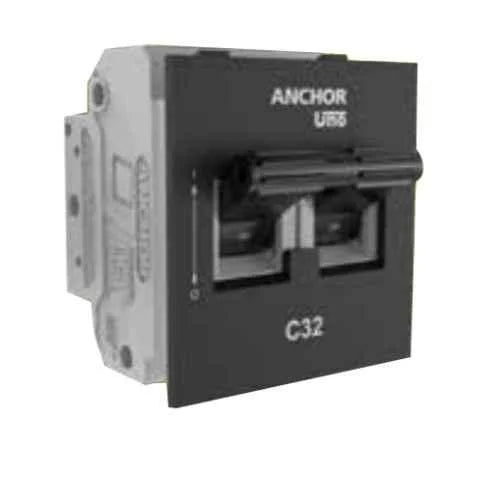

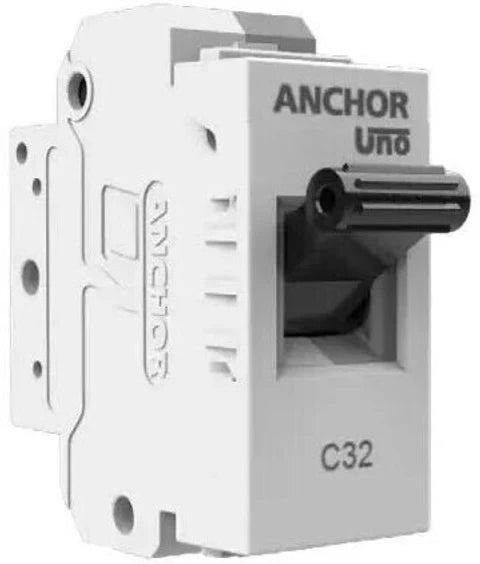

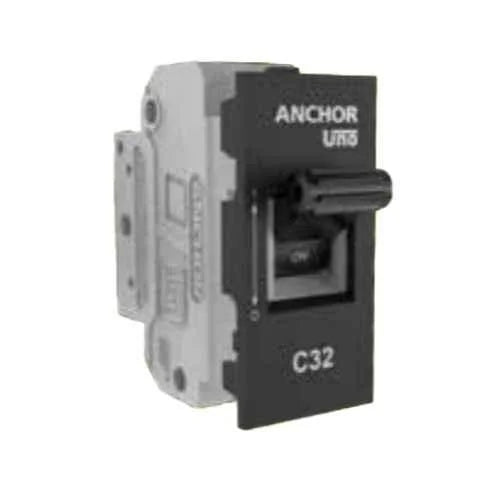

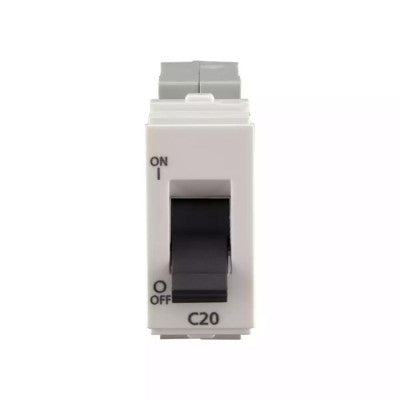

Anchor Roma Urban 20A Single Pole C Curve Silver Mini Modular MCB, 66154S, (Pack of 12)

The Anchor Roma Urban 20A Single Pole C-Curve Silver Mini Modular MCB, model 66154S, available in a pack of 12, protects circuits from overloads and short circuits in residential and commercial applications. It features a premium silver modular design with flame-retardant V0-grade polycarbonate housing for superior safety, heat resistance, and aesthetic integration.

Key Specifications

• Poles: Single Pole (1P)

• Rated Current: 20 Amperes

• Curve Type: C-Curve (trips at 5-10 times rated current for moderate inrush loads like lighting/small motors)

• Rated Voltage: 240V AC

• Frequency: 50 Hz

• Breaking Capacity: 3 kA (3000A)

• Dimensions: Compact modular (approx. 80 mm height x 18 mm width, 1 module)

• Mounting: DIN rail snap-fit or flush screw-mounted

• Terminal Capacity: Dual termination up to 35 mm² (max 10 mm² copper)

• Protection Class: IP20, finger-proof terminals

• Standards: IS/IEC 60898-1 compliant

Features

• Mid-trip indication for clear fault status

• Trip-free mechanism to prevent manual override during faults

• Ergonomic knob for easy operation

• Thermal-magnetic tripping with low watt loss for energy efficiency

This energy-efficient MCB from Anchor by Panasonic integrates seamlessly into modern silver switchboards with reliable protection.
