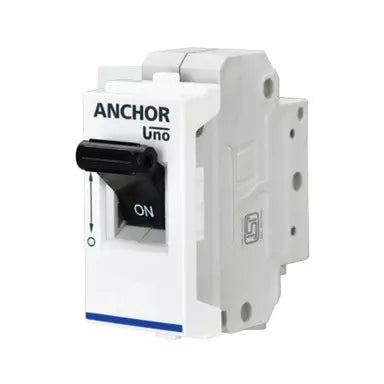

Anchor Roma Plus 6A SP C Type Mini Modular MCB, 89980 (Pack of 12)

The Anchor Roma Plus 6A Single Pole C Type Mini Modular MCB, model 89980, available in a pack of 12, is a compact, reliable miniature circuit breaker designed for residential and commercial electrical circuits. It has a single pole configuration with a rated current of 6 Amperes and a C Curve trip characteristic. The MCB features a breaking capacity of 3 kA, operates at 240V AC and 50 Hz frequency, and complies with IS/IEC 60898-1 standards.

Key Specifications

• Poles: Single Pole (1P)

• Rated Current: 6 Amperes

• Curve Type: C Curve (suitable for moderate inrush currents)

• Rated Voltage: 240 V AC

• Frequency: 50 Hz

• Breaking Capacity: 3 kA (3000A)

• Material: Flame-retardant polycarbonate housing

• Installation: Modular snap-fit or flush screw mounted

• Compliance: IS/IEC 60898-1 certified

• Color: White

• Packaging: Pack of 12

Features

• Mid-trip indication for easy fault detection

• Trip-free mechanism to avoid manual override at faults

• Compact ergonomic design for easy installation and longevity

This MCB from the Anchor Roma Plus series ensures safe and efficient overload and short circuit protection, suitable for various electrical applications in homes and offices.
