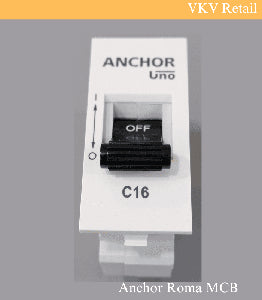

Anchor Roma Plus 16A SP C Type Mini Modular MCB, 89982 (Pack of 12)

The Anchor Roma Plus 16A Single Pole C Type Mini Modular MCB, model 89982, available in a pack of 12, is designed for safe and reliable protection against overloads and short circuits in electrical circuits. It features a single pole with a rated current of 16 Amperes and a C Curve trip characteristic. The MCB has a breaking capacity of 3 kA and operates at 240V AC with a frequency of 50 Hz. It complies with IS/IEC 60898-1 standards.

Key Specifications

• Poles: Single Pole (1P)

• Rated Current: 16 Amperes

• Curve Type: C Curve (thermal-magnetic trip for moderate inrush currents)

• Rated Voltage: 240 V AC

• Frequency: 50 Hz

• Breaking Capacity: 3 kA (3000A)

• Material: Flame-retardant polycarbonate housing

• Installation: Modular snap-fit or flush screw mounted

• Compliance: IS/IEC 60898-1 certified

• Color: White

• Packaging: Pack of 12

Features

• Mid-trip fault indication for ease of troubleshooting

• Trip-free design preventing manual override during faults

• Energy-efficient low watt loss design

• Compact and ergonomic for easy installation

The Anchor Roma Plus 16A Mini MCB is suitable for residential, commercial, and light industrial applications requiring robust circuit protection.
