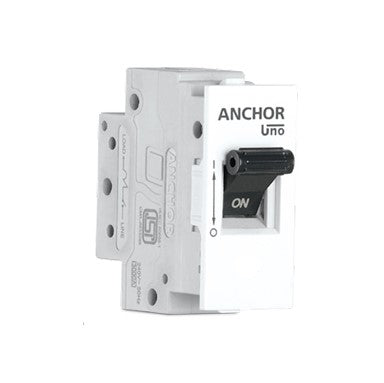

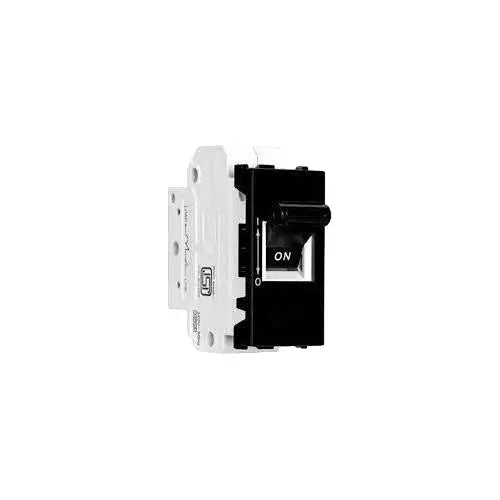

Anchor Roma Classic Uno 25A Single Pole C Curve White Mini Modular MCB, 98073, (Pack of 12)

The Anchor Roma Classic Uno 25A Single Pole C-Curve White Mini Modular MCB, model 98073, available in a pack of 12, protects circuits from overloads, overcurrents, and short circuits in residential and commercial installations. It features a compact white design with low watt loss and snap-fit mounting for seamless switchboard integration.

Key Specifications

• Poles: Single Pole (1P)

• Rated Current: 25 Amperes

• Curve Type: C-Curve (trips at 5-10 times rated current for moderate inrush from lighting/small motors)

• Rated Voltage: 240V AC

• Frequency: 50 Hz

• Breaking Capacity: 3 kA (3000A)

• Dimensions: Compact modular (approx. 80 mm height x 18 mm width)

• Weight: Approx. 0.115 kg

• Mounting: DIN rail snap-fit or flush screw-mounted

• Terminal Capacity: Dual termination up to 35 mm²

• Protection Class: IP20, finger-proof terminals

• Standards: ISI certified, compliant with IS/IEC standards

Features

• Mid-trip indication for clear fault status

• Trip-free mechanism (prevents manual override during faults)

• Dumbbell-shaped knob for easy operation

• Flame-retardant polycarbonate housing for safety and durability

This energy-efficient MCB from Anchor by Panasonic ensures reliable protection with aesthetic appeal and simple maintenance.
