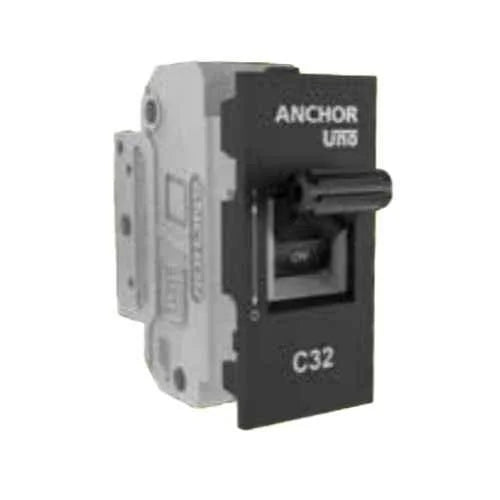

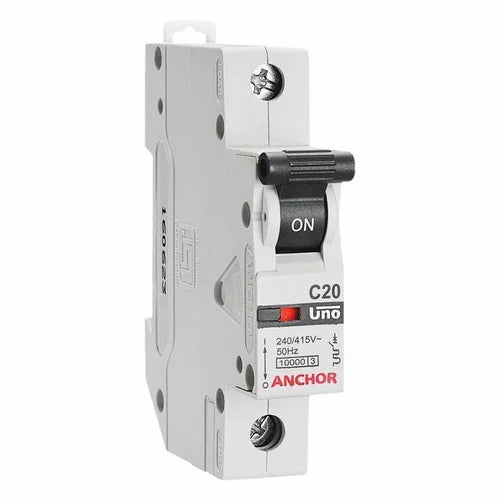

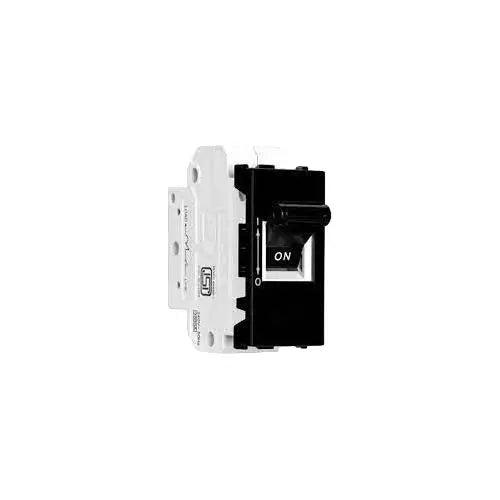

Anchor Roma Classic Uno 16A Single Pole C Curve White Mini Modular MCB, 98071, (Pack of 12)

The Anchor Roma Classic Uno 16A Single Pole C-Curve White Mini Modular MCB, model 98071, available in a pack of 12, safeguards circuits against overloads and short circuits in residential and commercial setups. It offers low watt loss for energy savings and snap-fit installation on modular plates.

Key Specifications

• Poles: Single Pole (1P)

• Rated Current: 16 Amperes

• Curve Type: C-Curve (trips at 5-10 times rated current for moderate inrush from lighting/small motors)

• Rated Voltage: 230-240V AC

• Frequency: 50 Hz

• Breaking Capacity: 3 kA (3000A) or 6 kA

• Dimensions: Compact modular (approx. 80 mm height x 18 mm width)

• Mounting: DIN rail snap-fit or flush screw-mounted

• Terminal Capacity: Dual termination up to 35 mm²

• Protection Class: IP20, finger-proof terminals

• Standards: ISI certified, compliant with relevant IS/IEC standards

Features

• Mid-trip indication for clear fault status

• Trip-free mechanism (prevents manual override during faults)

• Dumbbell-shaped knob for easy operation

• Fire-retardant housing for safety and durability

This reliable MCB from Anchor by Panasonic ensures efficient protection with aesthetic integration into switchboards.
