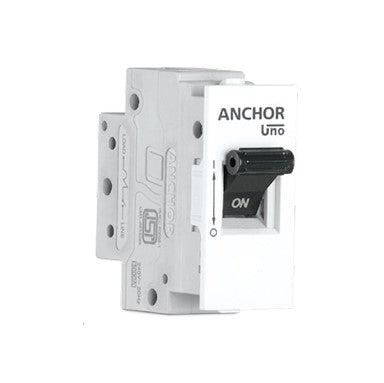

Anchor Roma Classic Uno 10A Single Pole C Curve White Mini Modular MCB, 98070, (Pack of 12)

The Anchor Roma Classic Uno 10A Single Pole C-Curve Mini Modular MCB, model 98070, available in a pack of 12, protects circuits from overloads and short circuits in residential and commercial applications. It features a white modular design with low watt loss for energy efficiency and snap-fit installation.

Key Specifications

• Poles: Single Pole (1P)

• Rated Current: 10 Amperes

• Curve Type: C-Curve (trips at 5-10 times rated current for moderate inrush loads like lighting/small motors)

• Rated Voltage: 240V AC

• Frequency: 50 Hz

• Breaking Capacity: 3 kA (3000A)

• Dimensions: Compact modular size (approx. 80 mm height x 18 mm width)

• Weight: 0.115 kg

• Mounting: DIN rail snap-fit on modular plates

• Terminal Capacity: Large dual termination up to 35 mm²

• Operating Temperature: -30°C to 70°C

• Standards: Compliant with relevant IS/IEC standards

Features

• Mid-trip indication for clear fault status

• Trip-free mechanism prevents manual override during faults

• Dumbbell-shaped knob for easy operation

• Flame-retardant housing for safety and durability

This cost-effective MCB from Anchor by Panasonic ensures reliable protection with simple installation and maintenance.
