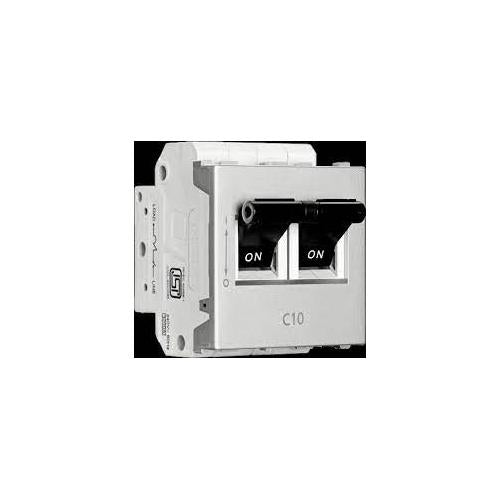

Anchor Roma Classic Uno 10A Double Pole C Curve White Mini Modular MCB, 98076 (Pack of 12)

The Anchor Roma Classic Uno 10A Double Pole C Curve White Mini Modular MCB, model 98076, available in a pack of 12, is designed for reliable electrical circuit protection against overloads and short circuits. It features a double pole configuration, rated current of 10 Amperes, with a C Curve characteristic suitable for moderate inrush currents. The MCB has a breaking capacity of 3 kA and operates at 240V AC with a frequency of 50 Hz. It is built with flame-retardant polycarbonate housing for enhanced safety and complies with IS/IEC 60898-1 standards.

Key Specifications

• Poles: Double Pole (2P)

• Rated Current: 10 Amperes

• Curve Type: C Curve (thermal-magnetic trip)

• Rated Voltage: 240 V AC

• Frequency: 50 Hz

• Breaking Capacity: 3 kA (3000A)

• Material: Flame-retardant polycarbonate housing

• Mounting: Modular snap-fit or flush screw mounted

• Color: White

• Compliance: IS/IEC 60898-1 certified

• Packaging: Pack of 12

Features

• Mid-trip indication for fault diagnostics

• Trip-free mechanism to prevent manual override during faults

• Compact and ergonomic design for easy installation and durability

This MCB is suitable for safe and efficient circuit protection in residential, commercial, and light industrial electrical installations.
