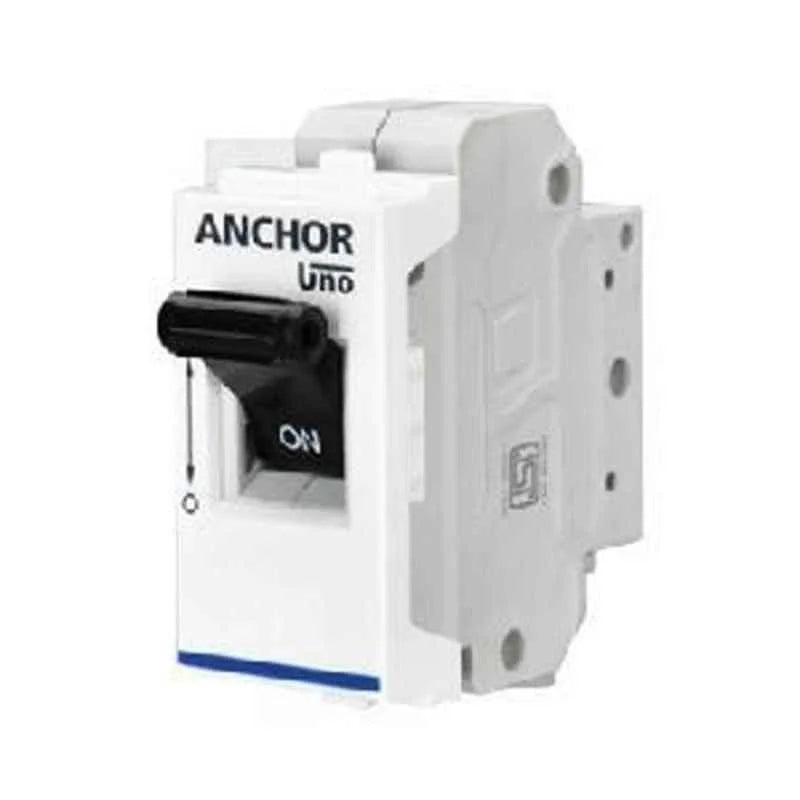

Anchor Penta Uno 16A Single Pole C Curve White Mini MCB, 98238, (Pack of 12)

The Anchor Penta Uno 16A Single Pole C Curve White Mini MCB, model 98238, available in a pack of 12, is designed to provide reliable protection against overloads and short circuits in residential and commercial electrical circuits. It features a white compact mini modular design with a breaking capacity of 3 kA, suitable for single-pole installations with a nominal voltage rating of 240V AC and frequency of 50 Hz.

Key Specifications:

• Brand: Anchor (Panasonic Life Solutions India Pvt. Ltd.)

• Current Rating: 16 Amperes

• Curve Type: C Curve (thermal-magnetic tripping for moderate inrush currents)

• Poles: Single Pole (1P)

• Rated Voltage: 240 V AC

• Frequency: 50 Hz

• Breaking Capacity: 3 kA

• Dimensions (LxWxH): Approximately 41.5 x 37.5 x 22.5 cm (pack of 12)

• Weight: Approx. 0.32 kg (pack of 12)

• Mounting: Vertical (DIN rail compatible)

• Compliance: IS/IEC 60898-3 certified

• Manufacturer: Panasonic Life Solutions India Pvt. Ltd.

Features:

• Mid-trip indication for easy fault detection

• Trip-free mechanism to prevent manual override during faults

• Compact design for easy installation in modular boards

• Energy-efficient with low watt loss

• Designed and manufactured with high-quality, tested materials for safety and durability

This MCB from Anchor Penta Uno series offers robust and efficient circuit protection with trusted Panasonic technology, ensuring safety and reliability for varied electrical applications.
