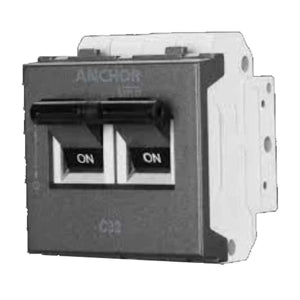

Anchor Penta Modular 10A Double Pole C Curve White UNO Mini Modular MCB, 65990 (Pack of 6)

The Anchor Penta Modular 10A Double Pole C Curve White UNO Mini Modular MCB, model 65990, available in a pack of 6, provides reliable protection against overloads and short circuits in electrical circuits. It features a double pole configuration with a rated current of 10 Amperes and a C Curve trip characteristic suitable for moderate inrush currents. The MCB has a breaking capacity of 3 kA (3000A), operates at 240V AC with 50 Hz frequency, and uses flame-retardant polycarbonate housing for safety and durability.

Key Specifications

• Poles: Double Pole (2P)

• Rated Current: 10 Amperes

• Curve Type: C Curve (thermal-magnetic trip)

• Rated Voltage: 240 V AC

• Frequency: 50 Hz

• Breaking Capacity: 3 kA (3000A)

• Housing: Flame-retardant polycarbonate

• Color: White

• Mounting: Modular snap-fit or screw mounted

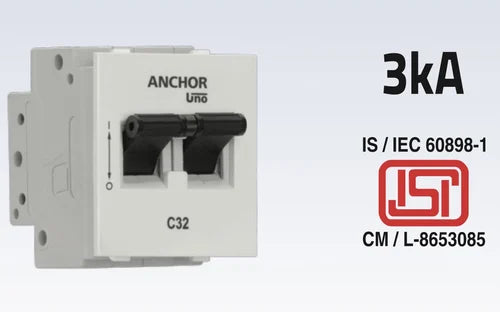

• Certification: IS/IEC 60898-1 compliant, ISI marked

• Packaging: Pack of 6

Features

• Mid-trip indication for easy fault detection

• Trip-free mechanism prevents manual override during faults

• Low watt loss design for energy efficiency and IP20 protection

This MCB is suitable for residential, commercial, and light industrial applications requiring efficient circuit protection at 10A rating.
