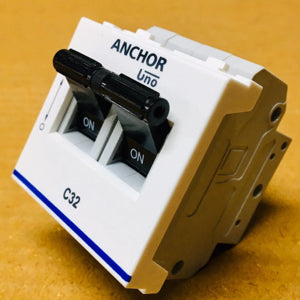

Anchor Penta 32A Uno Mini DP C-Type MCB,98251, Breaking Capacity: 3 kA (Pack of 12)

The Anchor Penta 32A Uno Mini Double Pole C-Type MCB, model 98251, has a breaking capacity of 3 kA (3000A) and is designed for effective protection against overloads and short circuits. This MCB is rated for 32 Amperes, operates at 240V AC with a frequency of 50 Hz, and features a C Curve trip characteristic suitable for moderate inrush currents. It comes in a double pole configuration, is made from flame-retardant polycarbonate housing for safety and durability, and supports modular snap-fit or flush screw mounting. It complies with IS/IEC 60898-1 standards.

Key Specifications:

• Rated Current: 32 Amperes

• Poles: Double Pole (2P)

• Curve Type: C Curve (thermal-magnetic trip)

• Breaking Capacity: 3 kA (3000A)

• Rated Voltage: 240 V AC

• Frequency: 50 Hz

• Material: Flame-retardant polycarbonate housing

• Mounting: Modular snap-fit or flush screw mounted

• Certification: IS/IEC 60898-1 compliant

• Color: White

• Packaging: Pack of 12

Features:

• Reliable overload and short circuit protection

• Mid-trip indication for easy fault detection

• Compact modular design for easy installation and durability

This MCB is ideal for residential, commercial, and light industrial use that requires dependable circuit protection at a 32A rating.
