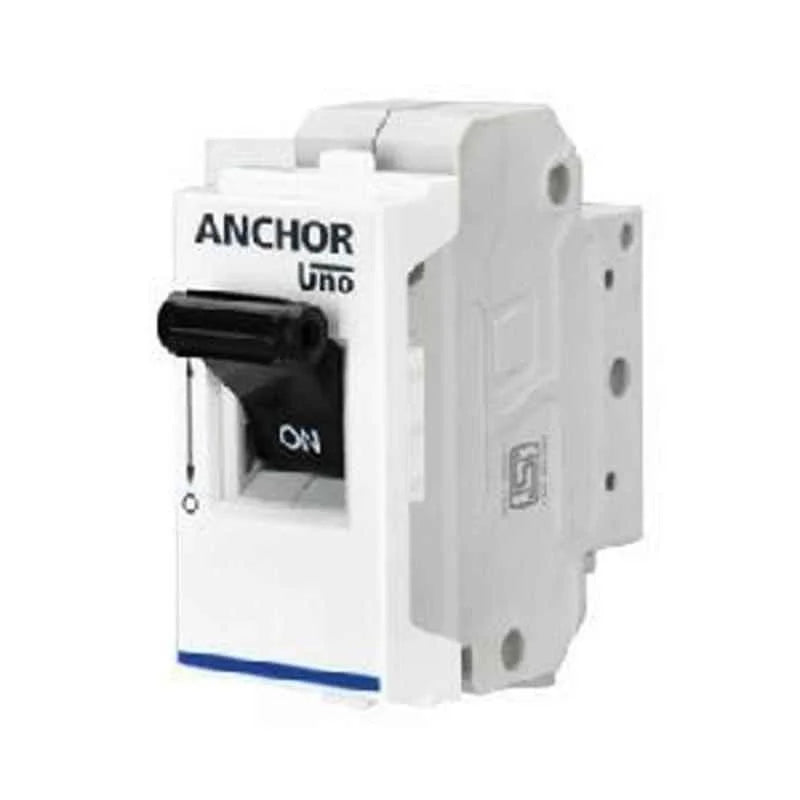

Anchor Penta 20A Uno Mini SP C-Type MCB,98239, Breaking Capacity: 3 kA, (Pack of 12)

The Anchor Penta 20A Uno Mini SP C-Type MCB, model 98239, available in a pack of 12, is a reliable compact circuit breaker designed to protect electrical circuits from overloads and short circuits. It features a white mini modular design with a breaking capacity of 3 kA, suitable for single-pole applications with a rated voltage of 240V AC and frequency of 50 Hz.

Key Specifications:

• Poles: Single Pole (1P)

• Rated Current: 20 Amperes

• Curve Type: C Curve (trips at 5-10 times rated current, ideal for circuits with moderate inrush currents)

• Rated Voltage: 240 V AC

• Frequency: 50 Hz

• Breaking Capacity: 3 kA (3000A)

• Mounting: Modular snap-fit or flush screw-mounted

• Terminal Capacity: Supports conductors up to 35 mm²

• Protection Class: IP20 with finger-proof terminals

• Standards: IS/IEC 60898-1 compliant

Features:

• Mid-trip indication for easy fault recognition

• Trip-free mechanism preventing manual override under fault conditions

• Energy-efficient low watt loss design

• Flame-retardant housing for enhanced safety and durability

• Compact and ergonomic for easy installation and maintenance

The Anchor Penta 20A Mini MCB combines durable build quality with Panasonic’s trusted electrical protection technology, making it suitable for varied residential, commercial, and light industrial applications requiring dependable circuit safety.
