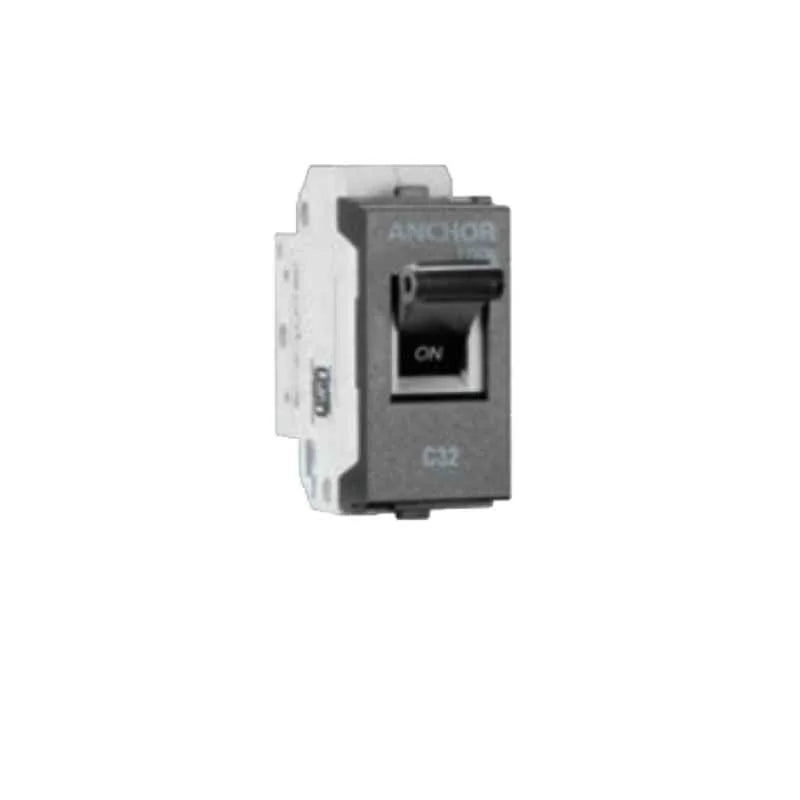

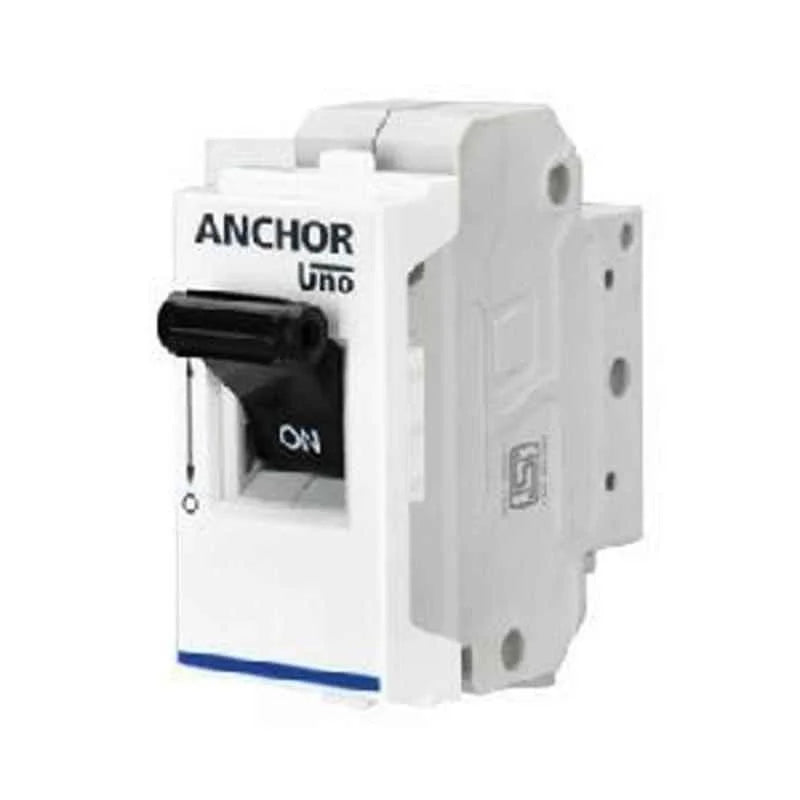

Anchor Penta 16A Uno Mini SP C-Type MCB,98238, Breaking Capacity: 3 kA, (Pack of 12)

The Anchor Penta 16A Uno Mini SP C-Type MCB, model 98238, available in a pack of 12, is designed for reliable circuit protection against overloads and short circuits in residential and commercial electrical circuits. This single-pole MCB features a white mini modular design with a breaking capacity of 3 kA and is rated for 240V AC at 50 Hz frequency.

Key Specifications:

• Poles: Single Pole (1P)

• Rated Current: 16 Amperes

• Curve Type: C Curve (thermal-magnetic trip for moderate inrush currents)

• Rated Voltage: 240 V AC

• Frequency: 50 Hz

• Breaking Capacity: 3 kA (3000A)

• Dimensions (LxWxH): Approximately 41.5 x 37.5 x 22.5 cm (pack of 12)

• Mounting: Snap-fit or flush screw-mounted

• Terminal Capacity: Supports cables up to 35 mm²

• Protection Class: IP20 finger-proof terminals

• Standards: IS/IEC 60898-1 compliant

Features:

• Mid-trip indication for easy fault identification

• Trip-free mechanism to prevent manual override during faults

• Low watt loss for energy efficiency

• Compact modular design for easy installation and maintenance

This MCB combines Panasonic's trusted technology with a compact design to provide efficient and durable circuit protection for varied electrical applications in homes and industries.
