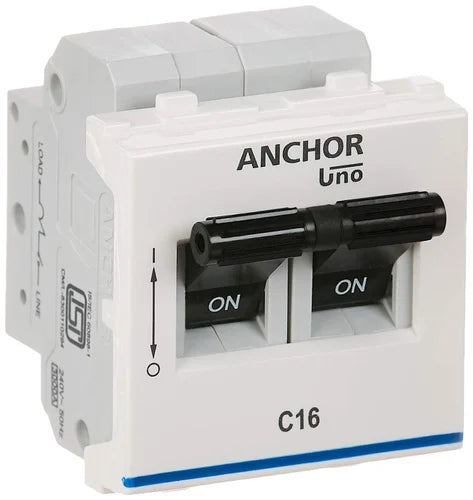

Anchor Penta 16A Uno Mini DP C-Type MCB,98248, Breaking Capacity: 3 kA (Pack of 12)

The Anchor Penta 16A Uno Mini Double Pole C-Type MCB, model 98248, has a breaking capacity of 3 kA (3000A) and is designed for reliable protection of electrical circuits against overloads and short circuits. It is rated for 16 Amperes, operates at 240V AC and 50 Hz frequency, and features a C Curve trip characteristic suitable for circuits with moderate inrush currents. The MCB comes in a double pole configuration and is made of flame-retardant materials, ensuring safety and durability. It supports modular snap-fit or flush screw mounting and complies with IS/IEC 60898-1 standards.

Key Specifications:

• Rated Current: 16 Amperes

• Poles: Double Pole (2P)

• Curve Type: C Curve (thermal-magnetic trip)

• Breaking Capacity: 3 kA (3000 A)

• Rated Voltage: 240 V AC

• Frequency: 50 Hz

• Material: Flame-retardant polycarbonate

• Mounting: Modular snap-fit or flush mounting

• Certification: IS/IEC 60898-1 compliant

Features:

• Provides reliable overload and short circuit protection

• Mid-trip indication for easy fault detection

• Compact modular design for easy installation and maintenance

This MCB is suitable for residential, commercial, and light industrial applications requiring safe and efficient circuit protection at 16A rating.
