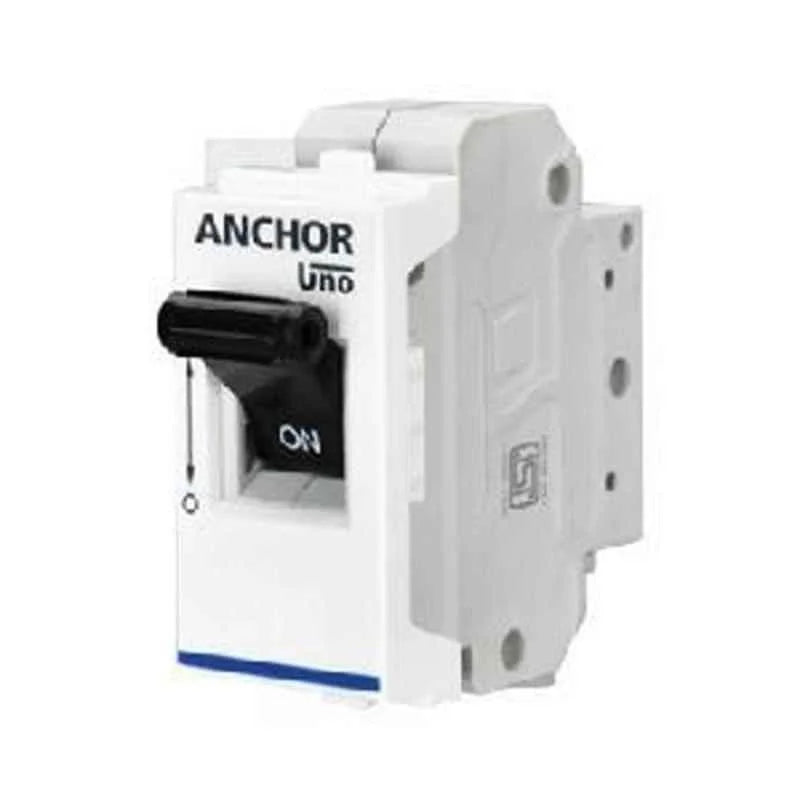

Anchor Penta 10A Uno Mini SP C-Type MCB,98237, Breaking Capacity: 3 kA, (Pack of 12)

The Anchor Penta 10A Uno Mini SP C-Type MCB, model 98237, available in a pack of 12, offers reliable protection against overloads and short circuits. It features a white compact mini modular design with a breaking capacity of 3 kA, suitable for single-pole installations with a rated voltage of 240V AC and 50 Hz frequency.

Key Specifications:

• Poles: Single Pole (1P)

• Rated Current: 10 Amperes

• Curve Type: C Curve (trips at 5-10 times rated current, suitable for moderate inrush currents like lighting and small motors)

• Rated Voltage: 240 V AC

• Frequency: 50 Hz

• Breaking Capacity: 3 kA (3000A)

• Mounting: Modular snap-fit or flush screw-mounted

• Terminal Capacity: Up to 35 mm² conductor size

• Protection Class: IP20 (finger-proof terminals)

• Standards: IS/IEC 60898-1 compliant

• Manufacturer: Panasonic Life Solutions India Pvt. Ltd.

Features:

• Mid-trip indication for clear fault detection

• Trip-free mechanism prevents manual override during faults

• Low watt loss design for energy efficiency

• Compact ergonomic design for easy installation and maintenance

The Anchor Penta 10A Mini MCB combines Panasonic's trusted technology with a compact form factor to provide efficient and durable circuit protection for both residential and commercial applications.
